Guide to Dark Launching New Architecture Without Breaking Production

Large-scale architecture migrations are among the riskiest projects in software engineering. A significant percentage of these projects fail, not due to poorly written code, but because of issues invisible in staging: unexpected performance bottlenecks, subtle data mismatches, or cascading failures that only manifest under real production load.

Dark launching new architecture is a strategy to validate a new system with live traffic without exposing users to potential instability. It aims to mitigate the risks that cause these high failure rates.

Why Migrations Fail and How Dark Launching Provides a Safety Net

The fundamental issue with a traditional “big bang” deployment is the gap between a staging environment and production reality. Replicating the unpredictable nature of live user traffic, variable network conditions, and the behavior of downstream services is nearly impossible. This gap is where many modernization projects fail.

These are not theoretical problems. A COBOL to Java migration can be derailed by mishandling fixed-point COMP-3 decimal types, leading to silent precision loss when using standard Java floating-point primitives. Another common scenario is a new microservice architecture that introduces significant latency when interacting with a legacy monolith—an issue that synthetic load tests often fail to detect.

De-Risking the Inevitable

Dark launching addresses this reality gap. Instead of an all-or-nothing cutover, you create a controlled feedback loop based on production evidence. You route a copy of live production traffic (or a small slice of it) to the new architecture. The new system processes these requests, but the responses are logged and analyzed, not sent back to the user.

A high-stakes deployment becomes a data-gathering exercise. You can compare the performance, output, and error rates of the old and new systems side-by-side, using the same real-world inputs.

A dark launch is not just about testing code; it’s about testing architectural assumptions. It validates everything from database query plans and third-party API response times to CPU utilization under erratic load—data that is difficult to generate reliably in a test environment.

To understand how a dark launch fits into the broader landscape of deployment strategies, a direct comparison is useful. Each method has its application, but for a high-risk architecture change, the differences are significant.

Dark Launching vs. Traditional Deployment Models

This table breaks down how dark launching compares to common methods like staging environments and blue-green deployments.

Attribute	Dark Launching	Staging Environment	Blue-Green Deployment
User Impact	Zero. Users are unaware of the test.	None (pre-production).	Minimal. A fast cutover, but issues can impact all users at once.
Risk Profile	Low. Failures are isolated and invisible to users.	Medium. Cannot replicate production chaos; risks remain.	High. A single failure during cutover can cause a full outage.
Data Fidelity	100% real production traffic.	Synthetic or sampled data.	100% real traffic, but only after the switch.
Cost	High. Requires running two full production environments.	Low. Typically a smaller, less powerful environment.	High. Requires double the production infrastructure.

As the table shows, while staging is lower cost and blue-green is fast, only dark launching allows testing with real traffic before any user is affected, offering the lowest risk profile for mission-critical changes.

The Impact of a Disciplined Rollout

The impact of this approach is documented. For complex modernizations where failure rates can be as high as 67% due to issues like COMP-3 data type mismatches, dark launching serves as a critical safety net. Netflix used this technique to decompose its monolith into microservices, enabling them to achieve over 1,000 deployments per day while reducing rollback incidents by 50%.

Building a resilient system is also critical. To avoid the common traps that lead to migration failures, understanding core principles is key. Exploring these software architecture best practices for scalable apps provides a solid foundation.

Ultimately, the goal is to transform a high-stress deployment into an incremental, data-driven process. The principles of dark launching are a cornerstone of many successful application modernization strategies because they replace assumptions with empirical evidence, proving an architecture is ready before users interact with it.

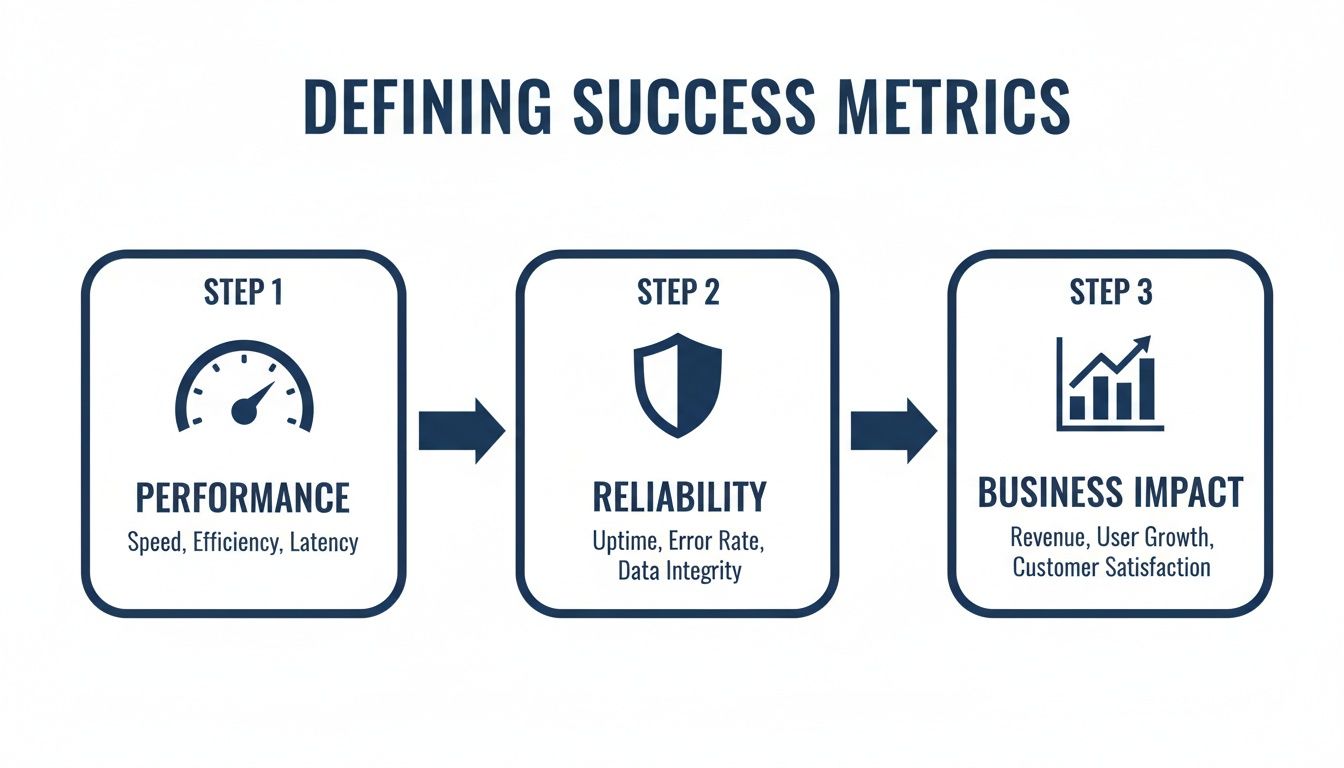

Defining Success Metrics Before You Start

Attempting to dark launch a new architecture without clear metrics is equivalent to deploying code into a void. The exercise is about gathering real-world data to validate the new system. Without concrete success criteria, you collect noise, not signals, making a go/no-go decision impossible. An unambiguous definition of “working” is required before routing a single request.

This is not just an engineering checklist. It requires agreement between engineering, product, and business leaders on specific numbers. This “contract” defines what “better” means for the new system and ensures the final decision is based on data, not subjective feedback.

Performance Parity and Improvement

First, the new architecture must handle production load without degrading user experience. Performance metrics are the frontline defense against deploying a system that is slower or less efficient. Vague goals like “the new service should be fast” are insufficient.

Latency: This directly impacts user experience. A solid target compares latency percentiles, as averages can be misleading. For example: “The P99 latency of the new service must not exceed the old service’s P95 latency by more than 10%.” This allows for minor variance while ensuring the worst-case user experience does not significantly degrade.
Resource Utilization: This demonstrates the efficiency of the new system. A concrete goal could be: “The new architecture must consume at least 20% less average CPU and 15% less memory than the legacy system when processing an identical volume of shadowed requests.” This data helps justify the migration’s cost.

System Reliability and Stability

A system that is fast but unstable is a liability. Reliability metrics ensure the new architecture is at least as stable as the old one. The focus is on the system’s ability to function correctly under operational stress.

You are not just looking for bugs; you are looking for systemic weaknesses. A single crash is an incident, but a pattern of crashes under specific load conditions points to a fundamental architectural flaw that must be addressed before a full rollout.

Key metrics to track include:

Error Rates: Monitor HTTP 5xx errors and unhandled exceptions. A specific success criterion is: “The new service must maintain an error rate below 0.1% for 48 consecutive hours under a 5% shadowed traffic load.”
System Crashes and Restarts: Monitor for any unexpected process terminations or, in a Kubernetes environment, pod restarts. Any unplanned restart is a signal of a potential issue.
Data Integrity: If the new architecture writes data, it must be verified against corruption. This involves running reconciliation jobs that compare the state produced by the new system against the old one. A relevant metric could be “zero data discrepancies detected by the reconciliation job across 1 million dual-written records.”

Validating Business Outcomes

Technical performance is secondary to the system’s ability to meet business needs. These metrics connect engineering work directly to business value.

For an e-commerce platform, this relates to transaction completion. A success metric might be: “The transaction completion rate for shadowed traffic must be statistically identical to the production baseline, with a variance of no more than 0.05%.”

For a data processing pipeline, the focus is on correctness. For example: “The output data from the new pipeline must match the legacy pipeline’s output with 100% fidelity for a sample of 10,000 processed events.” This proves that the new logic produces the same trusted result.

With success metrics defined, the next step is routing live production traffic to the new architecture. This typically involves two patterns: traffic shadowing and phased rollouts. These are often used sequentially to systematically de-risk the migration.

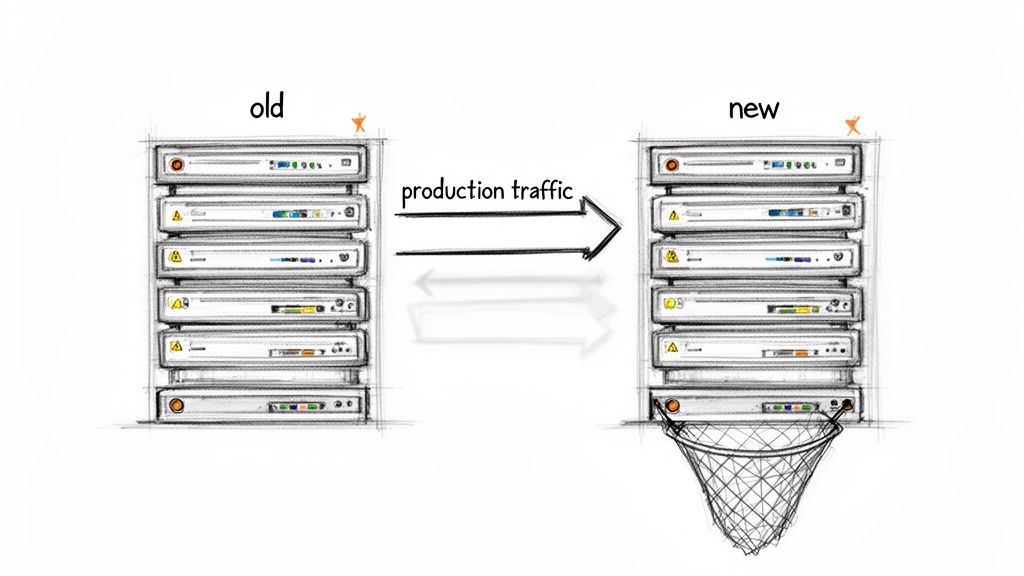

Stress-Testing With Real Traffic: Traffic Shadowing

Traffic shadowing (or mirroring) is the core of a dark launch. A copy of incoming production requests is sent to the new architecture in parallel. The old system handles the request and returns the response to the user. The new system’s response is logged, analyzed, and discarded.

This method stress-tests the new system with 100% real, unpredictable production traffic, providing a comprehensive shakedown for performance and stability before any user experience is at risk.

How Traffic Shadowing Works

Traffic manipulation is typically handled at the infrastructure’s ingress layer. The choice of tool depends on the existing tech stack.

Service Mesh (like Istio): In a Kubernetes environment, a service mesh provides precise control. With Istio, traffic mirroring rules can be defined in a YAML file, specifying the percentage of traffic to be shadowed.
Reverse Proxies (like NGINX): A reverse proxy such as NGINX can also be used. The mirror directive allows for duplicating a request to a new service while the original request proceeds untouched.
Cloud-Native Load Balancers: Cloud providers often have built-in capabilities. An AWS Application Load Balancer, for example, can be configured with target groups to forward requests to both old and new systems.

As you evaluate the shadowed traffic, your predefined success criteria are used to determine if the new system is performing as expected.

This ensures the new system is judged against objective data.

From Shadow to Live: Phased Rollouts

Once the new architecture has handled shadowed production load without issues, it’s time to expose it to a small fraction of users. This is managed through feature flags and phased rollouts.

A feature flag acts as a conditional switch in the code, allowing traffic to be directed to either the old or new system for specific user segments without requiring a new deployment.

The rollout process is methodical:

Internal Users (Dogfooding): The first users of the new architecture should be the internal team. This provides high-quality feedback in a controlled environment.
Canary Rollout: Begin by rolling out to 1% of external users. This provides the first real signal from production traffic. Monitor metrics closely.
Incremental Increase: If metrics remain stable at 1%, increase the rollout to 5%. Allow it to run for several hours or a day. Continue to 20%, then 50%, and so on, validating stability at each stage.

This incremental process is a key component of modern software delivery and central to dark launching a new architecture. These concepts are explored further in our guide on incremental legacy modernization.

Reversibility is critical. If P99 latency spikes or error rates increase at the 5% traffic mark, a feature flag allows for an immediate rollback. All traffic reverts to the legacy system, turning a potential production incident into a minor, controlled event.

This approach is supported by industry data. Meta reported a 70% reduction in production incidents after standardizing dark launches. Amazon has used similar canary-style rollouts to support over 50 million deployments a year with a failure rate of just 0.01%.

By combining shadowing with feature-flag-driven rollouts, a high-risk migration is transformed into a series of small, controlled, data-backed steps.

Building an Effective Observability Strategy

Routing traffic is only part of the process. Without robust observability, you are not dark launching; you are running a second system blind. A well-defined observability strategy turns raw traffic data into the intelligence needed for a confident go/no-go decision.

This involves more than just installing a monitoring agent. It requires a deliberate plan to capture logs, metrics, and traces that map directly to the defined success criteria. The goal is to move from knowing if something broke to understanding why it broke.

Logging Discrepancies, Not Just Errors

Standard error logging is a baseline requirement. For a dark launch, the most valuable logs highlight subtle differences between the old and new systems. The new architecture might not throw an exception, but its output could be incorrect—a more dangerous failure mode. This is critical for learning how to detect and handle silent data corruption bugs in production before they cause significant damage.

Your logging strategy should answer specific questions:

Payload Comparison: Is the JSON response from the new service structurally identical to the old one?
Data Mismatches: Did both systems produce the same final values when processing the same request?
Latency Drift: Log the execution time of key functions in both systems to identify specific slowdowns.

This level of detail is necessary to catch issues like a floating-point miscalculation resulting in a one-cent transaction difference—an error that might otherwise go unnoticed for weeks.

Metrics That Drive Decisions

Dashboards should reflect your success metrics, not just generic system vitals. CPU and memory usage are useful, but they don’t confirm if the new system is an improvement. The most important metrics are those that provide a clear signal on performance, reliability, and business impact.

The purpose of a dark launch dashboard is to provide an unambiguous, at-a-glance answer to one question: “Is the new system performing better, worse, or the same as the old one?” If the dashboard is ambiguous, the strategy has failed.

For example, instead of just tracking average latency, display P95 and P99 latency for both systems on the same graph. Instead of a simple error count, show an error rate as a percentage of total requests, benchmarked against the legacy system’s baseline.

This approach allows the team to make data-backed statements, such as: “The new architecture processed 1 million shadowed requests with 50% less CPU usage and zero new errors.”

Tracing to Pinpoint Architectural Bottlenecks

Moving from a monolith to microservices can increase the complexity of a single request. What was once a single function call may now traverse multiple services, making latency issues difficult to debug with logs alone. Distributed tracing is essential in this context.

Distributed tracing provides a complete map of a request’s journey through the new architecture. When a shadowed request takes 300ms longer than its production counterpart, tracing can identify the specific service call causing the delay. It provides the insight needed to distinguish between “the system is slow” and “the call from the auth-service to the user-profile-service is the bottleneck.”

This visibility is foundational to a healthy DevOps culture and fits into the broader picture of a strong DevOps integration and modernization strategy.

By combining targeted logging, business-aligned metrics, and distributed tracing, you build a comprehensive picture of your new architecture’s real-world behavior, turning your dark launch into a predictable, data-driven validation process.

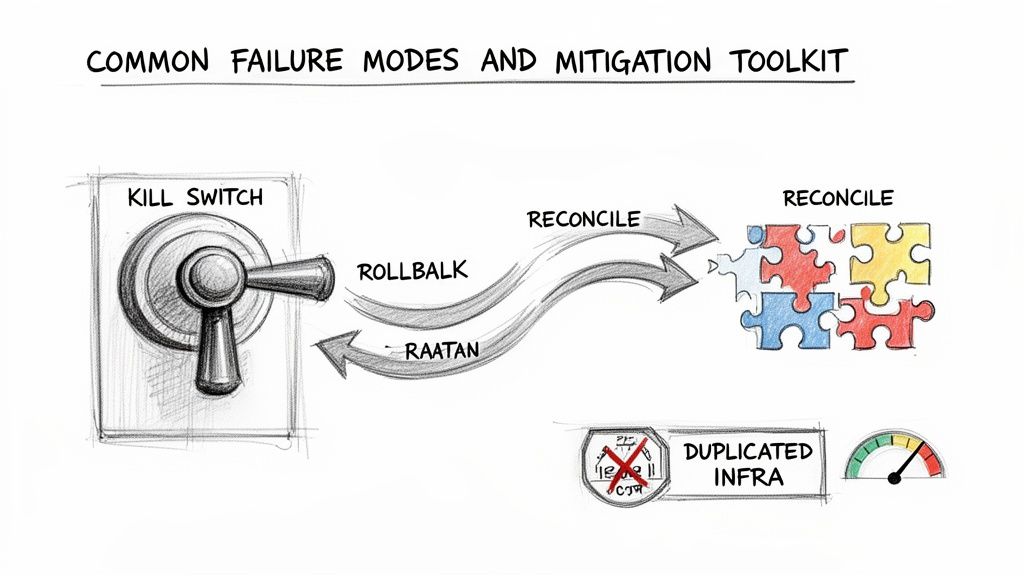

Anticipating Common Failure Modes and Mitigation Plans

Even a well-planned dark launch will encounter issues. The strategy is designed to mitigate risk, not eliminate it. A plan that only considers the ideal scenario is incomplete. A prepared team has a pre-approved, rehearsed response for when things go wrong.

Without a mitigation plan, a dark launch can introduce new risks. It is necessary to identify likely failure modes and build the tools to handle them before routing any real requests.

Data Corruption from Dual Writes

Silent data corruption is one of the most significant risks. When a new architecture writes to a database in parallel with the old one, even minor discrepancies can lead to data integrity issues. This can occur when a new service mishandles a data type or has a race condition that only appears under production load.

A data reconciliation script is the primary defense. This tool should run continuously, comparing records written by both systems and flagging any mismatches. This allows the team to debug the new service without affecting the canonical data store. If discrepancies exceed a predefined threshold (e.g., 0.01%), an automated alert should be triggered.

Unexpected Downstream Service Impacts

A new architecture does not operate in isolation. It can inadvertently overload a downstream service not designed for new traffic patterns. For example, a more efficient service might increase the call volume to a legacy authentication service, triggering rate limits and causing an outage for that dependency.

Observability is key to detecting this. Monitor the error rates and latencies of all downstream services the new architecture interacts with. A sudden spike in HTTP 503 (Service Unavailable) errors from a dependency is a signal for immediate action.

The most critical tool for managing downstream impact is the kill switch. This is a mandatory requirement. You must have the ability to instantly halt all shadowed traffic to the new architecture with a single command. Rehearsing the use of this kill switch should be part of deployment drills.

Runaway Infrastructure Costs

Running two systems in parallel duplicates infrastructure, and costs can escalate if not monitored. A misconfigured auto-scaling policy or an inefficient query in the new system can lead to significant cloud bills. In some projects, costs have increased by 200-300% instead of the anticipated 100% duplication.

Set up strict budget alerts in your cloud provider’s console. Monitor cost dashboards with the same diligence as performance metrics. Define a strict timeline for the dark launch to avoid an open-ended experiment that consumes budget. Set a deadline (e.g., four weeks) to force a clear go/no-go decision.

Common Dark Launch Failure Modes and Rollback Strategies

Proactive planning for these scenarios is crucial for a smooth transition. Here is a reference table for common problems and how to prepare for them.

Failure Mode	Leading Indicator	Primary Mitigation	Rollback Action
Silent Data Corruption	Discrepancy count from reconciliation script exceeds 0.01%.	Immediately stop writes from the new service.	Purge corrupted data from the new DB; restart shadow writes.
Downstream Outage	P99 latency on a downstream service increases by >50%.	Activate the kill switch to halt all shadowed traffic.	Disable the specific integration causing the issue; re-enable shadow.
Performance Degradation	New system’s P99 latency exceeds baseline by >20%.	Use feature flags to roll traffic back to 0%.	Analyze traces to find the bottleneck; deploy a fix and restart rollout.
Cost Overrun	Cloud spend rate exceeds forecast by >25%.	Cap auto-scaling groups for the new architecture.	De-provision non-essential resources; optimize and re-deploy.

This proactive planning provides a statistical advantage. It is a core reason the technique can improve time-to-market by 40% for complex applications. Data from a ConfigCat survey shows that 91% of DevOps teams in large enterprises use dark launches for hotfixes with zero downtime, reducing their mean time to recovery by 75% during architecture pivots. You can find more data on how dark launches drive these results.

Frequently Asked Questions

Running two production systems in parallel often raises questions. A dark launch is intended to de-risk a major architectural change, but it is not without cost or complexity. Here are answers to common questions from engineering leaders.

How Is Dark Launching Different From Canary Releases or Blue-Green Deployments?

These methods are all forms of “progressive delivery,” but they address different problems. Confusing them can lead to selecting the wrong tool for the task.

Blue-Green Deployments focus on minimizing downtime, not risk. 100% of traffic is switched to a new environment at once. If an issue exists, all users are affected immediately.
Canary Releases test user-facing changes on a small subset of real users (e.g., 1% or 5%). This is suitable for testing a new UI element, but the impact on those users is real.
Dark Launching is for backend validation. It sends real production traffic to a new system that users do not see. Its purpose is to test performance, stability, and correctness under real-world load with zero user-facing risk.

A useful way to think of these is as a sequence. A dark launch is used to battle-test a new architecture with live traffic. Once its stability is confirmed, a canary release might be used to slowly introduce users to the new system. Dark launching is the step before any user interacts with the new code.

What Is the Estimated Cost and Effort Overhead for a Dark Launch?

The overhead is significant. The investment falls into two categories: infrastructure and engineering time.

First, infrastructure costs can be substantial. Running two systems in parallel can temporarily double compute and data storage costs for the shadowed services. For a moderately complex system, this can range from $10,000 to over $100,000 per month in additional cloud spend.

Second is the engineering effort. Building traffic shadowing mechanisms, setting up robust observability dashboards, and creating reliable kill switches requires senior engineering talent. A reasonable budget would be 2-4 senior engineers for 1-3 sprints to implement the foundational framework.

This cost should be weighed against the alternative. Research from the Uptime Institute indicates that a major production outage can cost a business over $1 million per hour. In that context, the engineering investment in a dark launch is often justifiable.

How Do You Handle Database Migrations and State Changes?

This is often the most complex part of a dark launch. Shadowing read-only traffic is relatively straightforward, but managing state changes (writes) requires a methodical approach.

There are several patterns for managing writes:

Dual Writes and Reconciliation: The application writes to both the old and new databases. A separate reconciliation job runs continuously to compare data and flag discrepancies in real-time.
Log-Only Writes: The new service executes the write operation against its own database, but the result is logged rather than committed. The outcome is then compared against the output from the old system. This avoids data corruption risk but does not test the new database under a true write load.
Event Sourcing: In an event-sourcing architecture, both old and new systems consume the same stream of events and process them independently. This provides strong decoupling but requires a prior architectural investment.

It is recommended to dark launch the read paths first. Only after achieving confidence in the new system’s read performance and data consistency should the riskier write paths be addressed.

Should We Build Dark Launching Capability In-House or Use a Vendor?

The build-vs-buy decision depends on team expertise and project timelines.

Building an in-house solution provides maximum control and customization. If your team has expertise with service mesh tools like Istio or Linkerd, or reverse proxies like NGINX and Envoy, this is a viable option. However, it can add months to the project timeline.

Vendor solutions, such as LaunchDarkly or ConfigCat, offer pre-built feature flagging, traffic management, and dashboards, which can reduce the timeline by weeks or months. For many complex modernizations, the ROI on a vendor solution can be higher due to reduced engineering effort and faster time to testing.

Annual costs for these platforms can range from $5,000 to $50,000+ depending on scale and features. Unless your architecture is simple or your team is already specialized in this area, starting with a vendor is often the more pragmatic choice.

Making the right architectural and vendor decisions is critical for a successful modernization. Modernization Intel provides the unbiased market intelligence you need—from real-world cost data to partner failure rates—to ensure your project doesn’t become a statistic. Get the data you need to make defensible decisions at https://softwaremodernizationservices.com.
